AGV Carry Bee (Low height type)

Super low speed type


Can run at super low speed.

・Running speed 0.1～50m/min
・Towing carts with assembly bed can construct flexible assembly line.
　Please look around the page for detail.
・Super low speed can be applied to;
　M type, L type, S type.
　　　
　Photo ; L type

牽引型

Control Programmable(Count up)
Transportable weight 750kg
Guidance method <Optical>, Magnetic ,<Optical & Magnetic>
Drive method Forward drive, 2WD
Driving speed 0.1～50ｍ/分
Length×Width×Height In case of L type：1445×170×450(mm)　※350 widthcan be selected.
Minimum turning radius R700mm
Continuously operable time 8Hr(Depend on operating rate and battery size)
Function/equipment
Driving function
Driving speed 8speeds changeable
Programming function
100 programs､256 stations､Moving mode(Straight,Right turn,Left turn,Stop,Speed change,Obstacle sensor ON/OFF,etc )<Setting 255 moving mode is possible.>,<Traffic control at intersection or confluence>,<Optical communication>,<Remote control>
Safety function
Overload detection,Obstacle sensor(Detecting area variable obstacle sensor,PBS type),Emergency stop switch,Emergency warning sound
Signal tower,Bumper sensor,Melody unit
Other
Driving wheel free mechanism when manual operation,<Automatic connect & detachable hook>,<Battery>,<Battery charger>

〈 〉：Option

CarryBee Kai

" Kai" comes from Kaizen. NEW

Compared with the current series
･Low-cost type with simple function
・Even for the beginner of AGV,　easy to use.

High reliability presented from Japan



Standard Short type


Even low cost type, Kai can perform same work with Low height type. Entering under a cart , automatic connecting and disconnecting are possible. (Note; Kai has only one route pattern.)


*The sales area of Kai type is limited. Please ask us.


Type Towing/Low height
Control Gap reading(for towing type), Spot marker, Marker pattern
Transportable weight 400kg
Guidance method Magnetic ,<Optical>,<Optical & Magnetic>
Drive method Forward drive, 2WD
Driving speed Tape cut, Spot marker :27m/min
Marker pattern :40m/min(3 speeds
changeable)
Length×Width×Height Towing :1300×350×270mm
Low height :1412×350×270mm
Minimum turning radius Towing :R600mm
Low height :R800mm
Continuously operable time 8Hr(Depend on operating rate and battery size)
Function/equipment
Programming function
All the types are No programmable.
Marker pattern type has movement modes : stop, 3 speeds changeable, obstacle sensor area changeable, pin hook up/down, and so on.
Safety function
Overload detection,Obstacle sensor(PBS type is available for Marker pattern type),Emergency stop switch, Emergency warning sound, Signal tower, Bumper sensor, Melody unit
Other
Driving wheel free mechanism when manual operation,<Pin hook>,
<Battery>, <Battery charger>, and other opt.

<>：Option

Standard Short type

Entering under a dolly ,automatic connecting and disconnecting are possible.

Standard Short type

Control Programmable(Count up)
Transportable weight Forward drive:300kg/Forward & reverse drive:600kg
Guidance method <Optical>, Magnetic ,<Optical & Magnetic>
Drive method Forward drive:2WD/Forward & reverse:4WD
Driving speed ～Approx 50m/min
Length×Width×Height Forward drive :820×350×350mm/Forward & reverse drive 1400×350×350mm
Minimum turning radius Forward drive :R350mm /Forward & reverse drive :R800mm
Continuously operable time 8Hr(Depend on operating rate and battery size)
Function/equipment
Driving function
Driving speed 8speeds changeable
Programming function
100 programs､256 stations､Moving mode(Straight,Right turn,Left turn,Stop,Speed change,Obstacle sensor ON/OFF,etc )<Setting 99 moving mode is possible.>,<Traffic control at intersection or confluence>,<Optical communication>,<Remote control>
Safety function
Overload detection,Obstacle sensor(Detecting area variable obstacle sensor,PBS type),Emergency stop switch,Emergency warning sound
Signal tower,Bumper sensor,Melody unit
Other
Driving wheel free mechanism when manual operation,<Automatic connect & detachable hook>,<Battery>,<Battery charger>

<>：Option

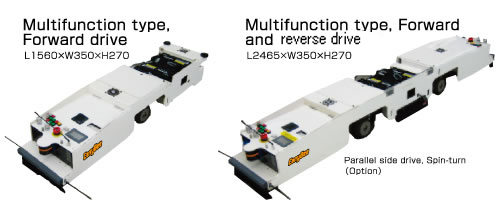

Multifunction type

Entering under a dolly, automatic connecting and disconnecting are possible.

Multifunction type

Control Programmable(Count up or Absolute)
Transportable weight Forward drive:500kg/Forward & reverse drive:750kg
Guidance method <Optical>, Magnetic ,<Optical & Magnetic>
Drive method Forward drive:2WD/Forward & reverse:4WD
Driving speed ～Approx 50m/min
Length×Width×Height Forward drive :1556×350×270mm/Forward & reverse drive :2462×350×270mm
Minimum turning radius Forward drive :R600mm/Forward & reverse drive:R1000mm
Continuously operable time 8Hr(Depend on operating rate and battery size)
Function/equipment
Driving function
Driving speed 8speeds changeable
Programming function
100 programs､256 stations､Moving mode(Straight,Right turn,Left turn,Stop,Speed change,Obstacle sensor ON/OFF,etc )<Setting 99 moving mode is possible.>,<Traffic control at intersection or confluence>,<Optical communication>,<Remote control>
Safety function
Overload detection,Obstacle sensor(Detecting area variable obstacle sensor,PBS type),Emergency stop switch,Emergency warning sound
Signal tower,Bumper sensor,Melody unit
Other
Driving wheel free mechanism when manual operation,<Automatic connect & detachable hook>,<Battery>,<Battery charger>

< >：Option

High-Load type(CarryBee-H)

Compact & High-Load type　　　　　　　　　　　　　　　　　　　　　　

・Transportable weight
８００ｋｇ～３０００ｋｇ
・Compact body

牽引型

Control Programmable(Count up or Absolute)
Transportable weight 800kg ～　３000kg
（Forward type:～1500kg)
Guidance method <Optical>, Magnetic ,<Optical & Magnetic>
Drive method Forward drive:2WD/Forward & reverse:4WD
Driving speed Approx 30～ 50m/min(Max speed depends on the spec.of transportation weight.)
Length×Width×Height Forward drive :1670×480×290mm
Forward and reverse :2660×480×290mm
Minimum turning radius Forward drive :R800mm
Forward and reverse :R1000mm
Continuously operable time ' -
Function/equipment
Driving function
Driving speed
Standard type :8speeds changeable
Multifunction :10speeds changeable
Programming function
100 programs､256 stations､Moving mode(Straight,Right turn,Left turn,Stop,Speed change,Obstacle sensor ON/OFF,etc )<Setting 99 moving mode is possible.>,<Traffic control at intersection or confluence>,<Optical communication>,<Remote control>
Safety function
Overload detection,Obstacle sensor(Detecting area variable obstacle sensor,PBS type),Emergency stop switch,Emergency warning sound
Signal tower,Bumper sensor,Melody unit
Other
Driving wheel free mechanism when manual operation,<Automatic connect & detachable hook>,<Battery>,<Battery charger>

< >：Option

Super low type (CarryBee-L)

Total height is １７０ｍｍ.

・Even if the space is narrow, this type can go in.
・Transportable weight　
Forward drive type : 500kg, Forward and reverse : 750kg
Control Programmable(Count up)
Transportable weight Forward drive:500kg/Forward & reverse drive:750kg
Guidance method <Optical>, Magnetic ,<Optical & Magnetic>
Driving speed Forward drive:2WD/Forward & reverse:4WD
Driving speed ～Approx 50m/min
Length×Width×Height Forward drive :1599×350×170mm
Forward and reverse :2640×350×170mm
Minimum turning radius Forward drive :R800mm
Forward and reverse :R1000mm
Continuously operable time 8Hr(Depend on operating rate and battery size)
Function/equipment
Driving function
Driving speed 8speeds changeable
Programming function
100 programs､256 stations､Moving mode(Straight,Right turn,Left turn,Stop,Speed change,Obstacle sensor ON/OFF,etc )<Setting 99 moving mode is possible.>,<Traffic control at intersection or confluence>,<Optical communication>,<Remote control>
Safety function
Overload detection,Obstacle sensor(Detecting area variable obstacle sensor,PBS type),Emergency stop switch,Emergency warning sound
Signal tower,Bumper sensor,Melody unit
Other
Driving wheel free mechanism when manual operation,<Automatic connect & detachable hook>,<Battery>,<Battery charger>


< >：Option
