AGV Carry Bee (Simple cart type)

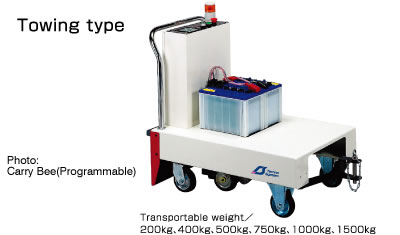

Towing type

From abundant line-up, 200kg～1500kg towing, can be selected according to the purpose.

Towing type

Control（Ref.１） Programable(Absolute､Count up)/No programable(Tape cut,Spot marker stop,Marker pattern)
Transportable weight 200,400,500,750,1000,1500 kg
Guidasnce method Optical,<Magnetic>,<Optical&Macnetic>
Drive method ～1000kg :2WD,1500kg:4WD
Driving speed ～Approx27m/min <Corresponding up to 60m/min is possible.>
Length×Width×Height 965mm×600mm×910mm
Minimum turning radius ～1000kg : R550mm, 1500kg:700mm
Continuously operable time 8Hr(Depend on operating rate and battery size)
Function/equipment
Driving function
<Driving speed 4speeds changeable>
Programing function
100 programs､256 stations､Moving mode(Straight,Right turn,Left turn,Stop,Speed change,Obstacle sensor ON/OFF,etc )<Setting 99 moving mode is possible.>,<Traffic control at intersection or confluence>,<Optical communication>,<Remote controle>
Safty function
Overload detection,Obstacle sensor<Detecting area variable obstacle sensor (PBS type>,Emergency stop switch,Emergency warning sound<Signal tower>,<Bumper sensor>,<Melody unit>
Other
Driving wheel free mechanism when manual operation,<Towing hook>,<Automatic detachable hook,>,<Battery>,<Battery charger>

(Ref.1)There are functions "No programable type " can't select.

< >：Option

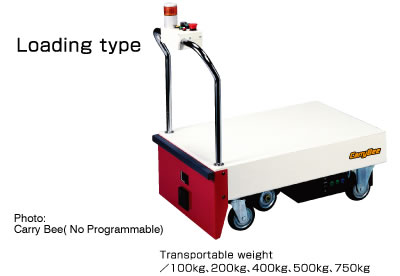

Loading type

Flat and wide platform　(Batteies are stored under the platform)
The activity as a cart for picking or a base vehicles of automatic conveyer machine is expected.

Loading type

Control（Ref.１） Programable(Absolute､Count up)/No programable(Tape cut,Spot marker stop,Marker pattern)
Transportable weight 100,200,400,500,750 kg
Guidasnce method Optical,<Magnetic>,<Optical&Macnetic>
Drive method ～500kg :2WD,750kg:4WD
Driving speed ～Approx27m/min <Corresponding up to 60m/min is possible.>
Length×Width×Height 965mm×600mm×910mm
Minimum turning radius ～500kg : R550mm, 750kg:700mm
Continuously operable time 8Hr(Depend on operating rate and battery size)
Function/equipment
Driving function
<Driving speed 4speeds changeable>
Programing function
100 programs､256 stations､Moving mode(Straight,Right turn,Left turn,Stop,Speed change,Obstacle sensor ON/OFF,etc ) <Setting 99 moving mode is possible.>,<Traffic control at intersection or confluence>,<Optical communication>,<Remote controle>
Safty function
Overload detection,Obstacle sensor<Detecting area variable obstacle sensor (PBS type>,Emergency stop switch,Emergency warning sound<Signal tower>,<Bumper sensor>,<Melody unit>
Other
Driving wheel free mechanism when manual operation,<Towing hook>,<Automatic detachable hook,>,<Battery>,<Battery charger>

(Ref.1)There are functions "No programable type " can't select.

< >：Option
