Outdoor model: Avance S

This AGV is designed to handle outdoor environments such as rain and uneven road surfaces. It is used for transportation between buildings within factory premises. A trackless model using 3D LiDAR that requires no magnetic cable is also available. This is a compact and affordable model with a maximum transport capacity of 1000 kg.

Product Information

Product Features
Main Specifications

Product Features

Small, space-saving, easy to install! Outdoor AGV

In many factories, manned towing vehicles are used for inter-building transportation. By introducing outdoor AGVs, this process can be unmanned. Outdoor AGVs are capable of operating in rainy weather, on slopes, and on uneven road surfaces.
Avance S is the most compact and affordable model in the outdoor AGV series. A trackless 3D LiDAR type is also available.
● Enables unmanned transportation between factory buildings.
● Operates in outdoor conditions such as rain, uneven surfaces, and slopes at building entrances.
● Towing type with a maximum capacity of 1000 kg
● Hybrid system using magnetic guidance and 3D LiDAR

Coming soon

Outdoor environment compatible

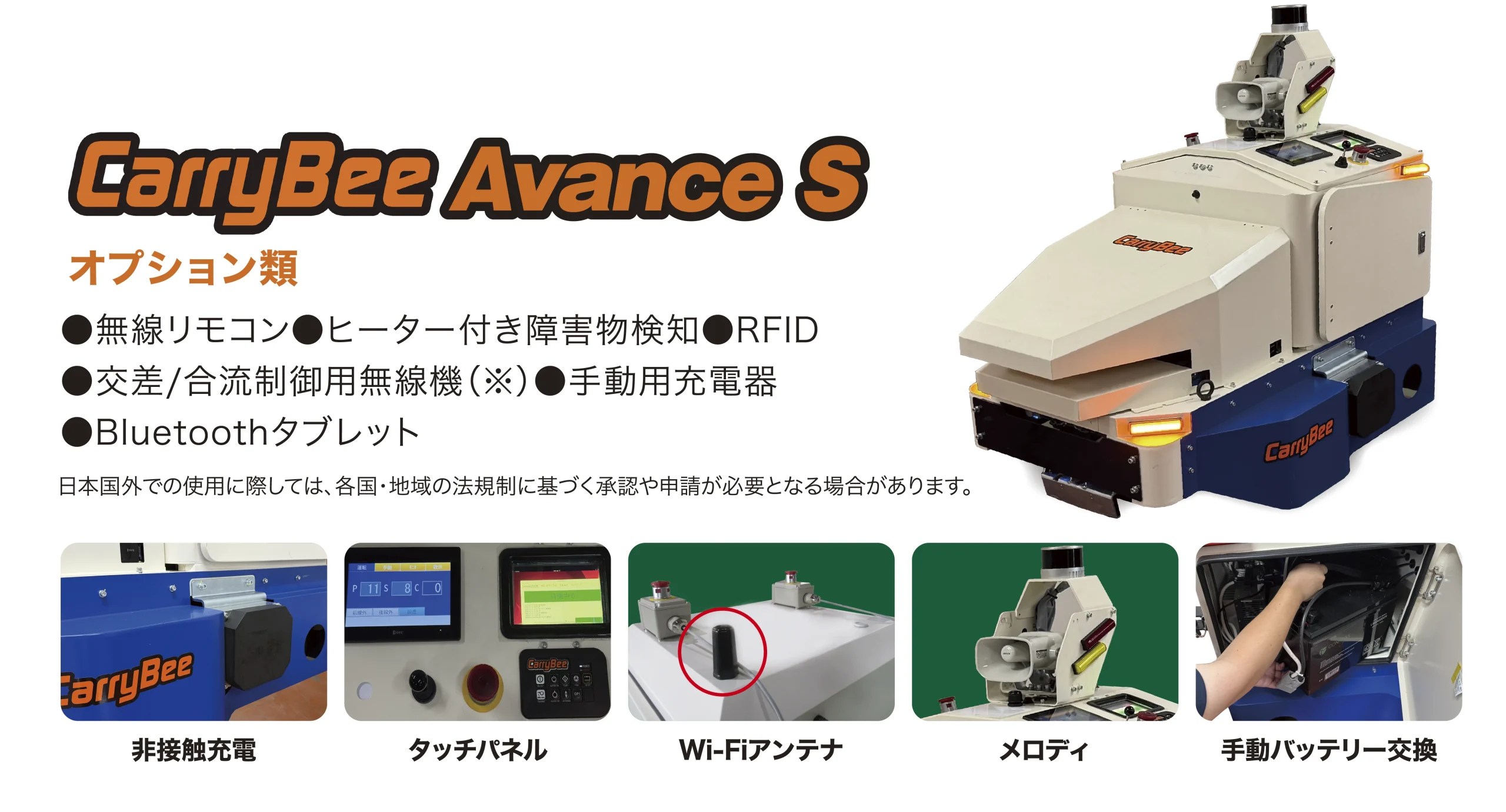

New model of trackless outdoor AGV

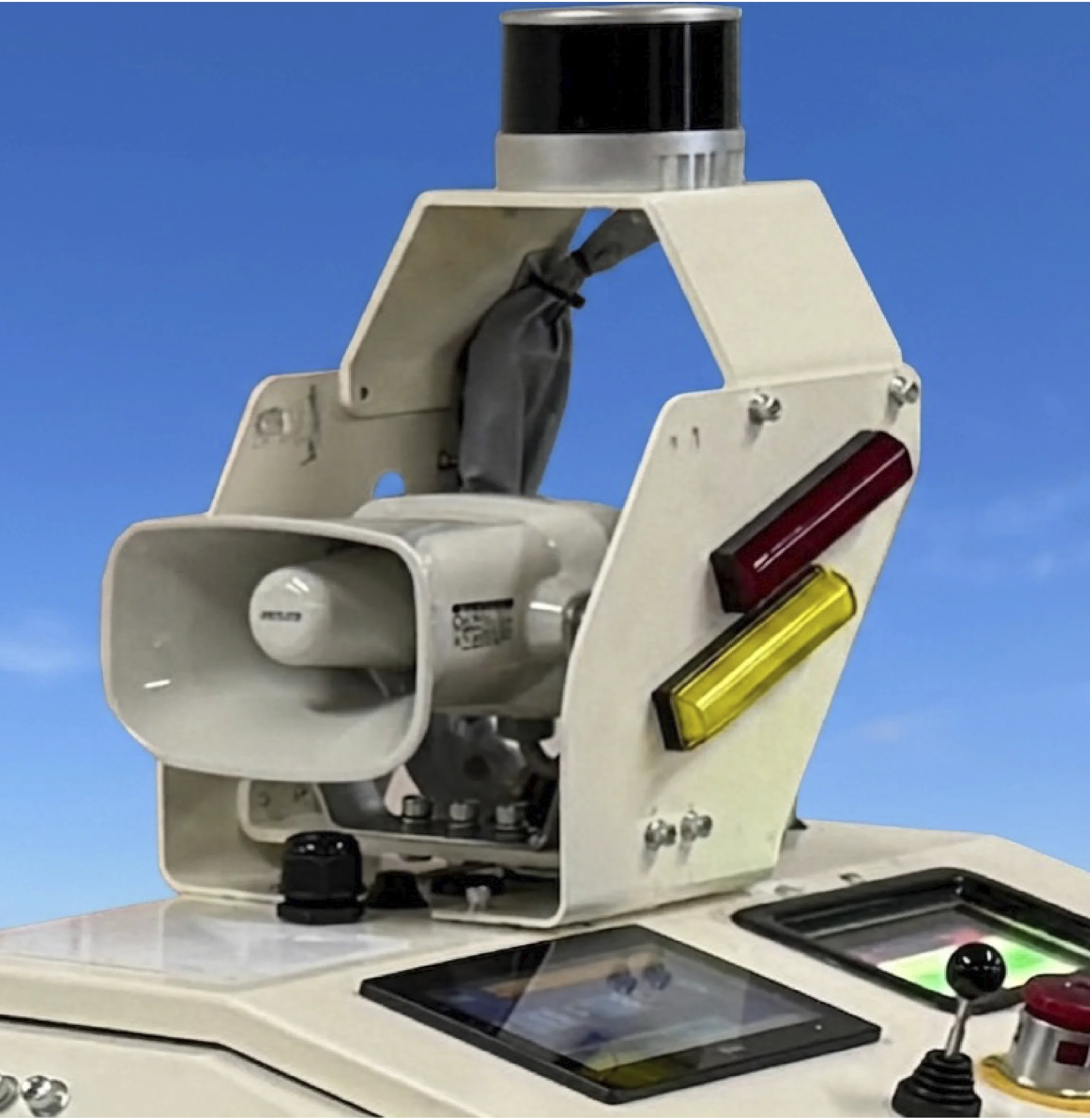

Two 3D Lidar sensors, which are also used in autonomous driving, are used. When measuring on a flat surface using a 2D sensor, the route may be lost due to environmental changes such as a pallet of parts being loaded near the driving route.
Accuracy can be improved by understanding the surrounding environment, including distant views, in 3D.

In the tracked magnetic type, a magnetic cable is embedded as the driving route, but by using a 3D Lidar sensor, the magnetic cable is no longer necessary, making it easier to change or add routes.

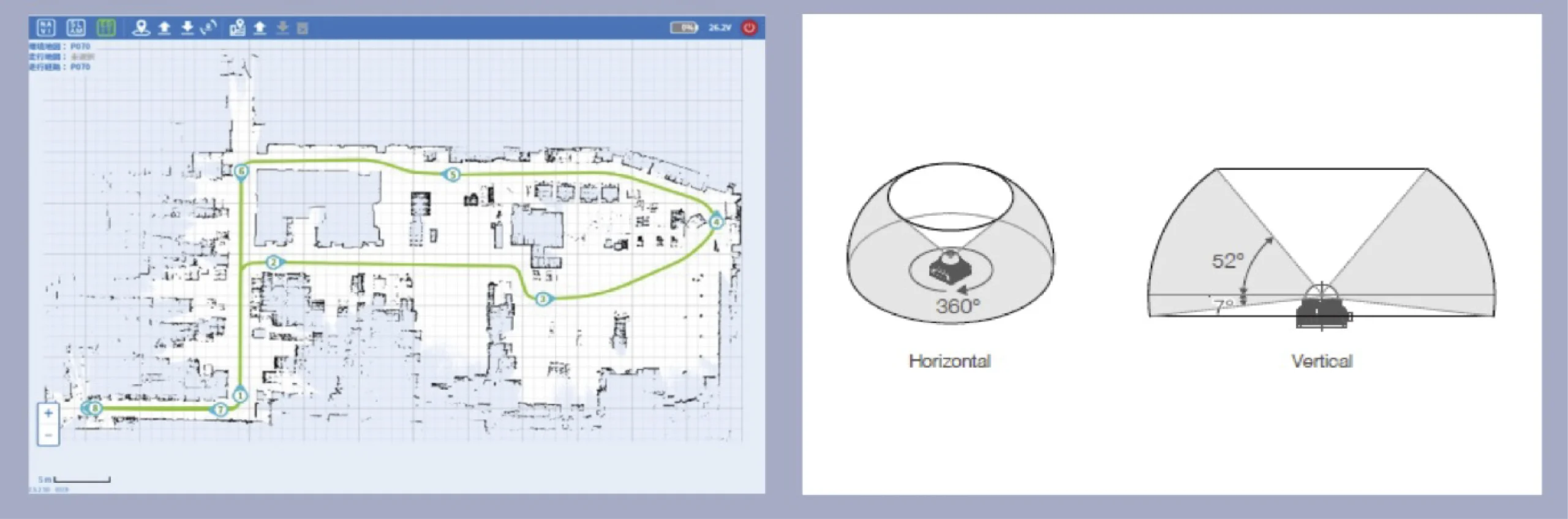

3D Lidar measurement data

Main Specifications

Towing weight (approximate)	～３０００ｋｇ
Traction force (maximum at high speed)	～３４５６Ｎ
Travel speed (unloaded)	~ Approx. 95m/min 10-speed switching
Guidance method	Magnetic
Travel direction	Forward, back a bit function
Minimum turning radius	Ｒ７００ｍｍ
Climbing ability	Up to 5 degrees (Transport load up to 2500 kg)
Stopping accuracy (AGV alone, no load)	±１０ｍｍ
Vehicle dimensions	Standard type: 1545 x 732 x 1425 [mm] High-speed type: 1750 x 732 x 1297 [mm]
Performance and Equipment	Driving performance - 10-step switching Destination designation function - Yes (counting type) or RFID Safety measures - Collision prevention (obstacle detection), bumper switch, indicator light (signal tower), melody unit
Battery	48v (150AH x 4)
