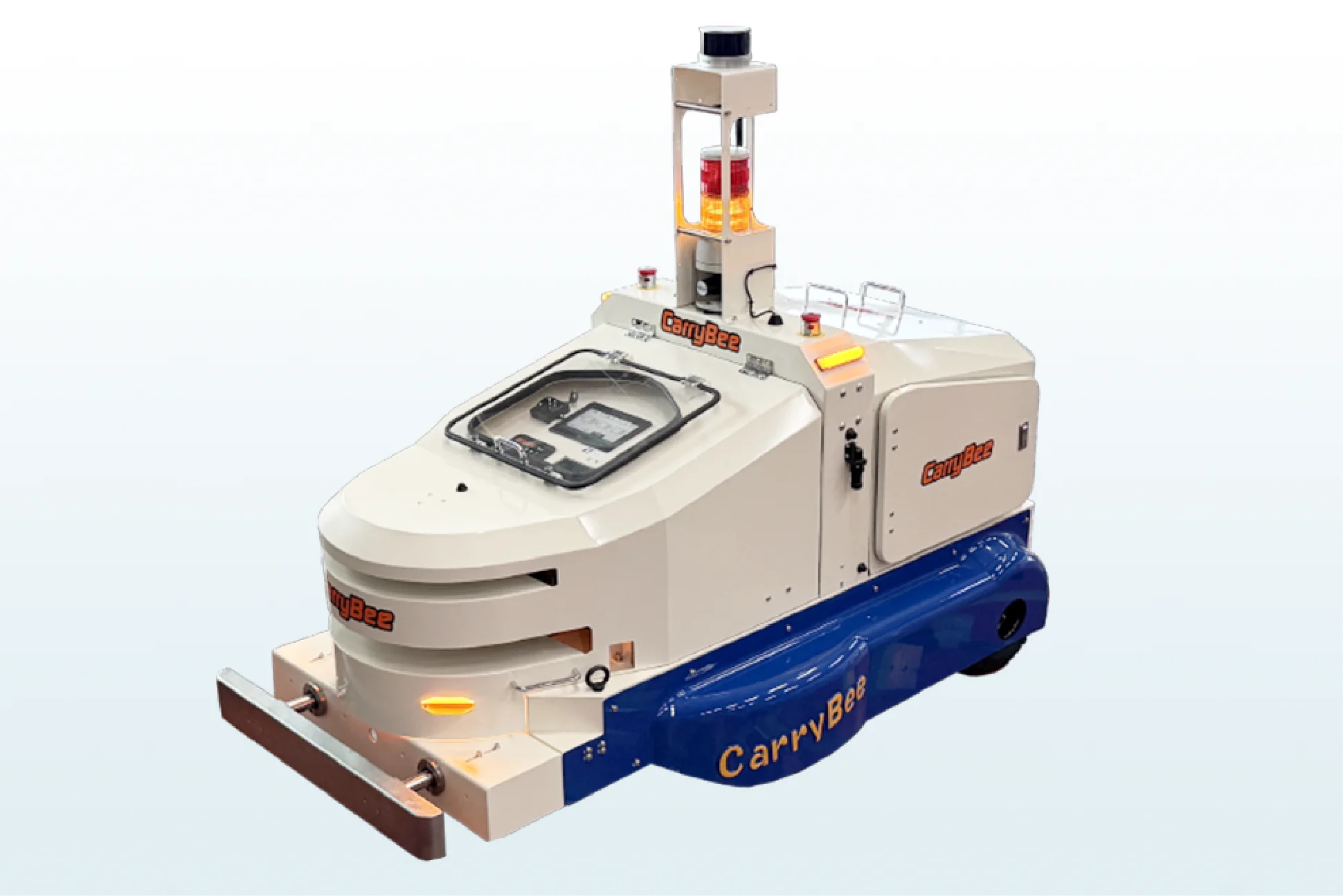

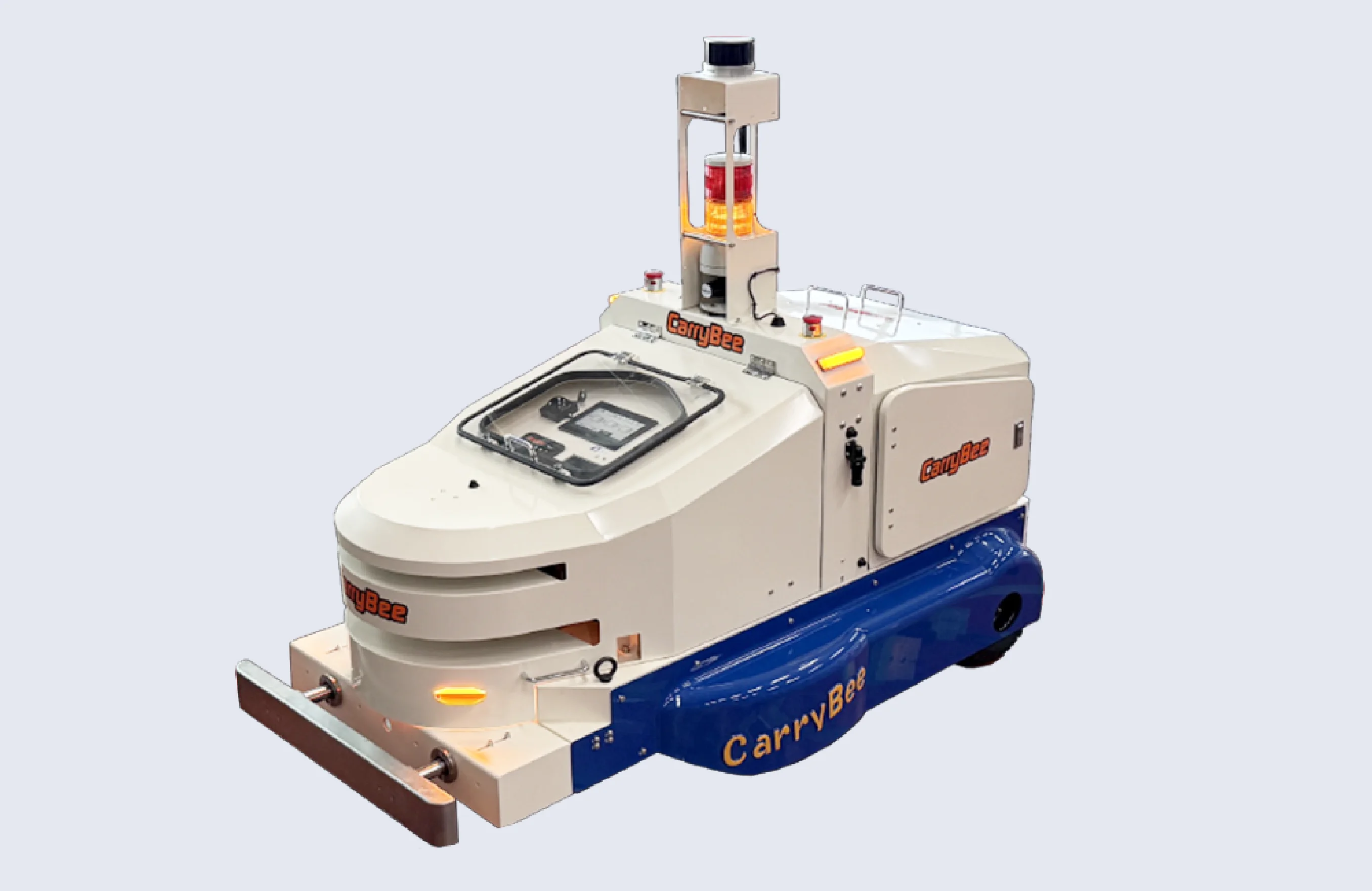

Outdoor model: Avance L

This AGV is designed for outdoor environments, such as rainy weather and uneven road surfaces. It is used for transport between buildings within factory premises. A trackless type equipped with 3D LiDAR, which does not require magnetic cables, is also available.

Product Information

Product Features
Main Specifications

Product Features

Functional equipment and performance improvement for outdoor use

In many factories, manned towing vehicles are used for transport between buildings. By introducing outdoor AGVs, unmanned operation can be achieved. These outdoor AGVs are capable of operating in various outdoor environments such as rainy weather, slopes, and uneven road surfaces.
The Avance M is the fastest and highest load-capacity model in the outdoor series. A trackless 3D LiDAR version is also available.
・Enables unmanned transport between factory buildings
・Supports outdoor conditions such as rain, uneven surfaces, and slopes at building entrances

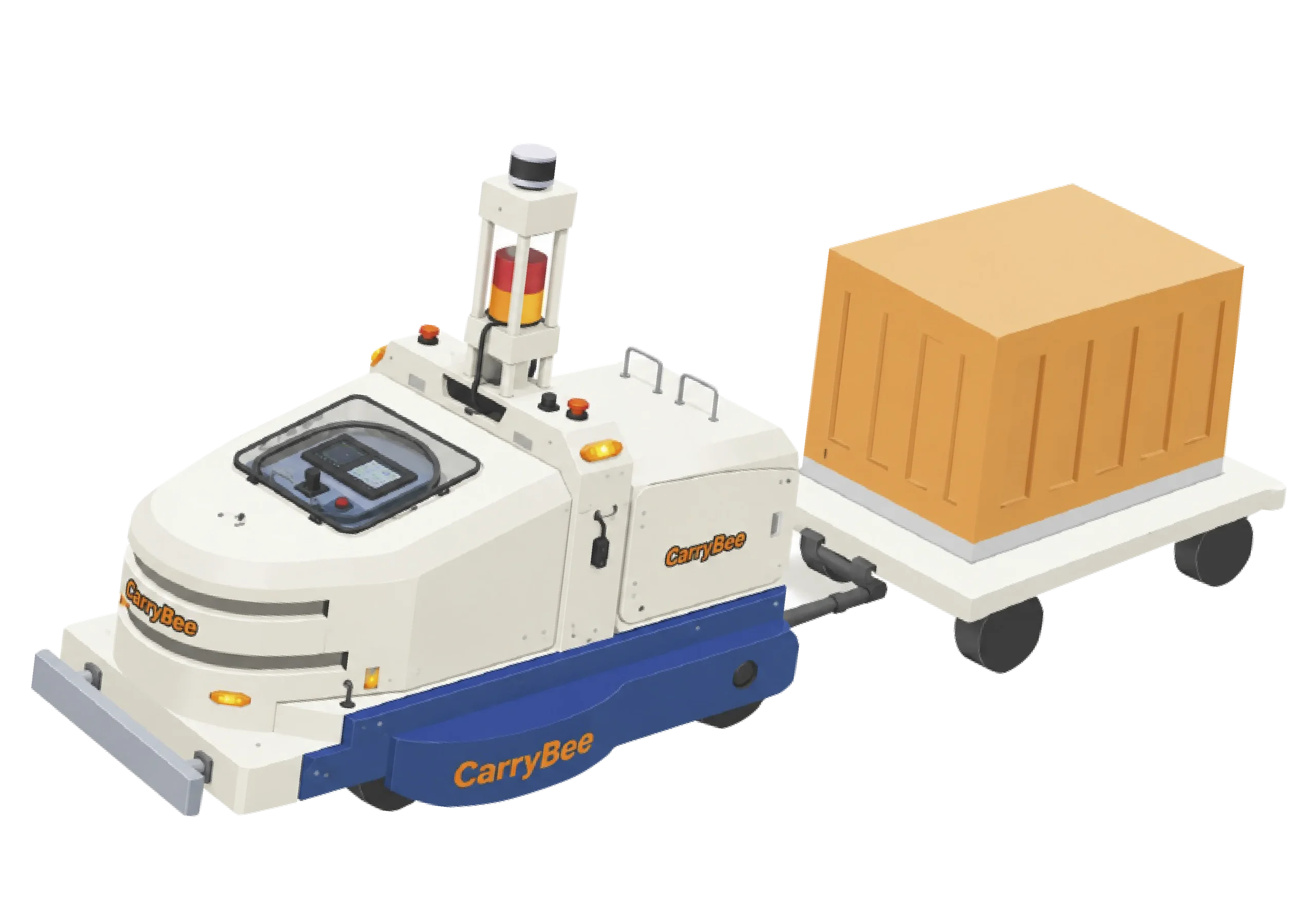

・Towing type with a maximum capacity of 3,000 kg
・Minimum turning radius of R700 allows space-saving operation and turning in indoor aisles
・Hybrid type supporting both magnetic guidance and 3D LiDAR

Outdoor environment compatible

New model of trackless outdoor AGV

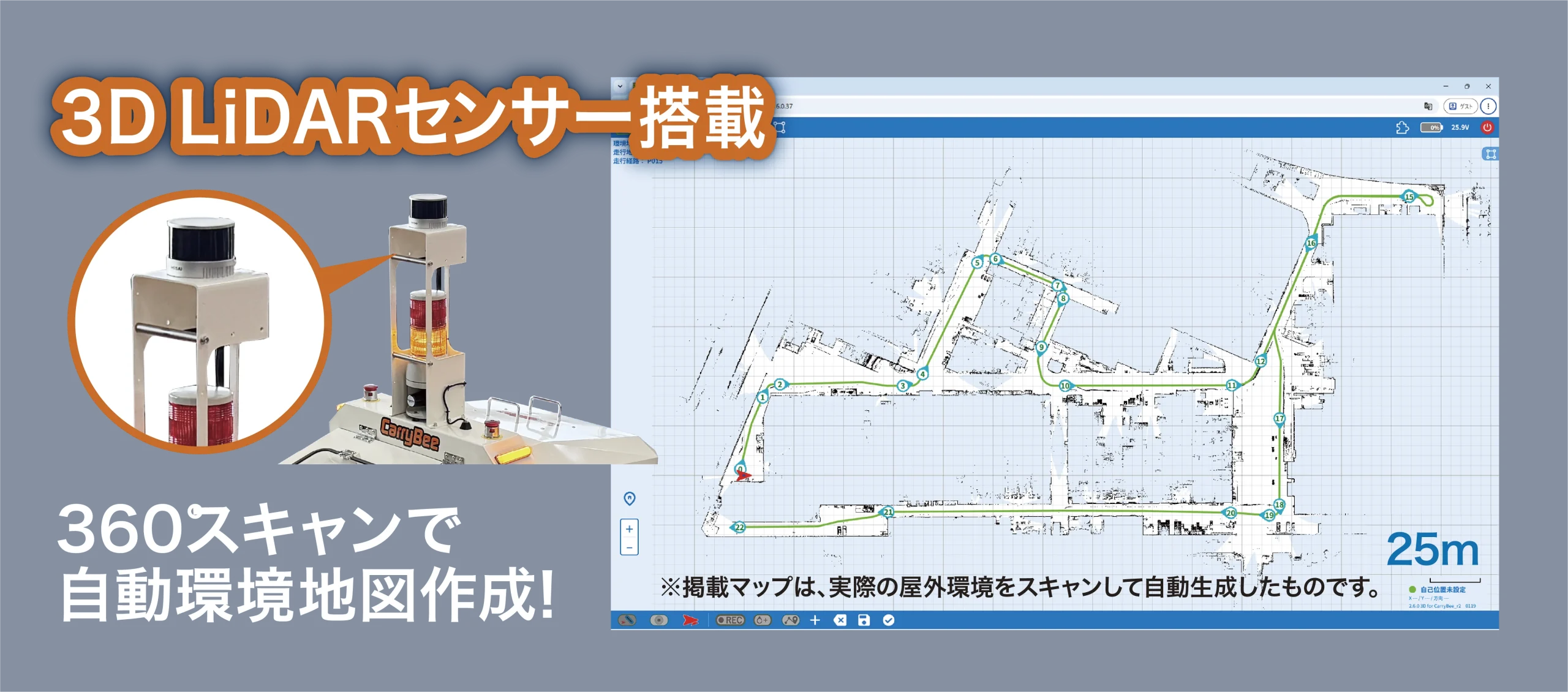

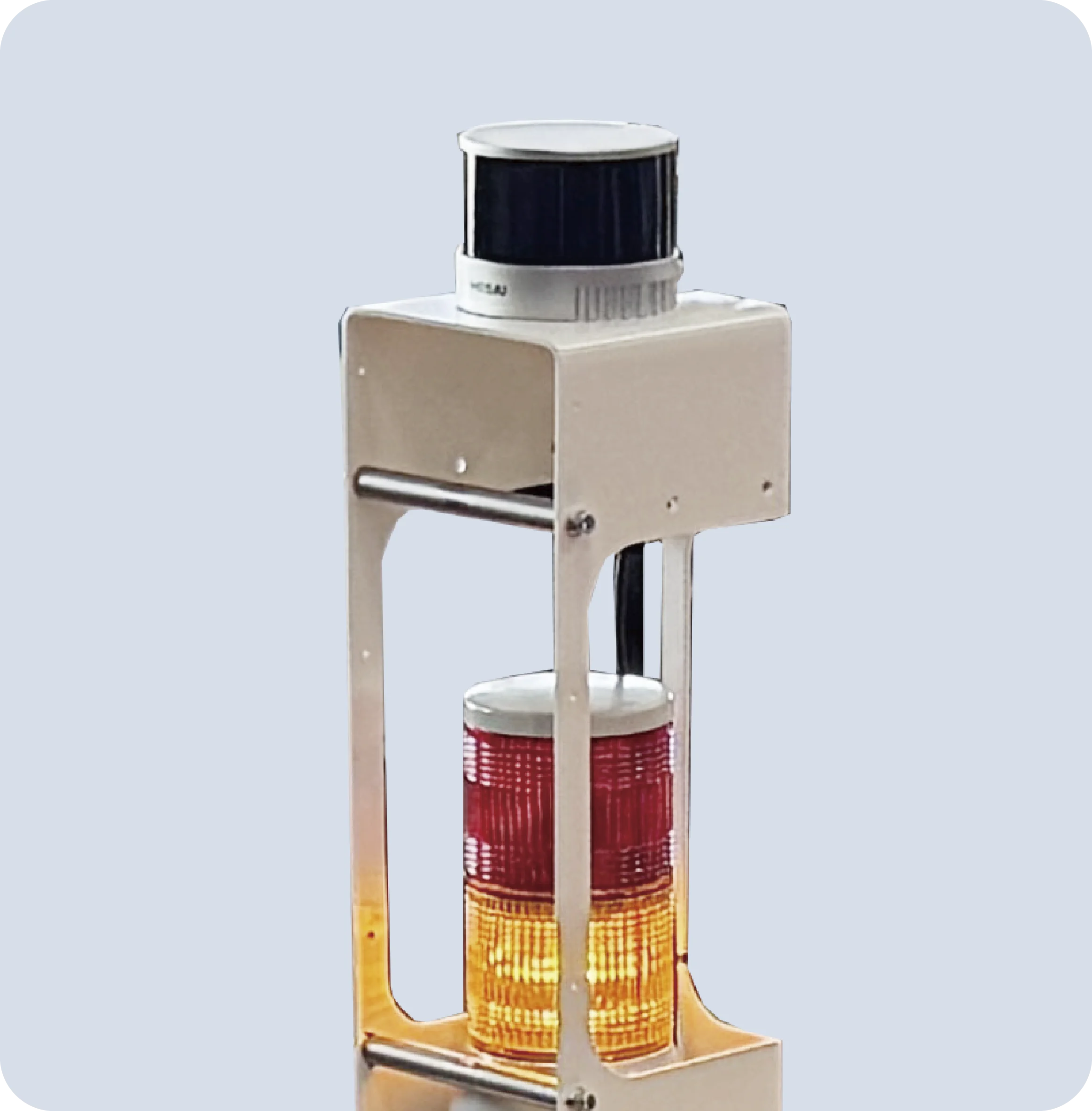

Two 3D Lidar sensors, the same ones used in autonomous driving, are used. When measuring on a flat surface using a 2D sensor, the route may be lost due to changes in the environment, such as a pallet of parts being loaded near the driving route.
Accuracy can be improved by understanding the surrounding environment, including distant views, in 3D.

In tracked magnetic systems, a magnetic cable is embedded as the driving route, but by using a 3D Lidar sensor, the magnetic cable is no longer necessary, making it easier to change or add routes.

Main Specifications

Towing weight (approximate)	~3000kg
Traction force (maximum at high speed)	~3456N
Travel speed (unloaded)	~ Approx. 95m/min 10-speed switching
Guidance method	Magnetic
Travel direction	Go forward, go back a bit
Minimum turning radius	R700mm
Climbing ability	Up to 5 degrees (Transport load up to 2500 kg)
Stopping accuracy (AGV alone, no load)	±10mm
Frame size	Standard type: 1545 x 732 x 1425 [mm] High-speed type: 1750 x 732 x 1297 [mm]
Performance and Equipment	Driving performance - 10-step switching Destination designation function - Yes (counting type) or RFID Safety measures - Collision prevention (obstacle detection), bumper switch, indicator light (signal tower), melody unit
Battery	48v (150AH x 4 pieces)
